CAS-5304LB Series

SKU: CAS-5304LB

Quick Overview

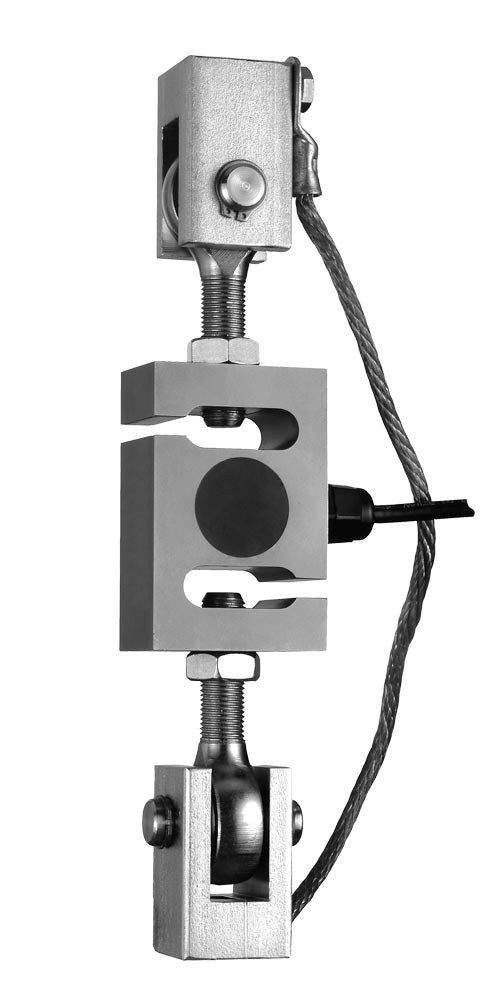

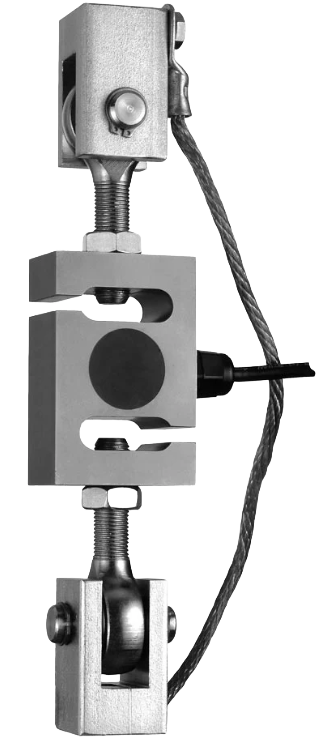

Isolated tension mount assembly available with a stainless steel potted S beam load cell with either a galvanized steel or stainless steel mount. Capacities range from 220 lbs to 11,000 lbs.

< Return to List

More Views

Details

Isolated tension mount assembly in capacities ranging from 220 lbs to 11,000 lbs.

  • Designed for mechanical conversions, hanging hoppers and bins
  • Stainless steel potted S beam load cell - IP67 rated
  • Galvanized and stainless steel assemblies
  • Easy to install

Applications - hopper scale, tank weighing systems, and hybrid scale conversions

Configurations -

  • Stainless steel load cell with galvanized steel mount
  • Stainless steel load cell with stainless steel mount



Load Cell - CAS-ULB -

Kits Available - 3 Mount or 4 Mount Kits are available. Kits will include the CAS SS34AS NEMA 4X Stainless Steel Junction Box with 4 cell signal trim summing card and 25 ft of cable.
