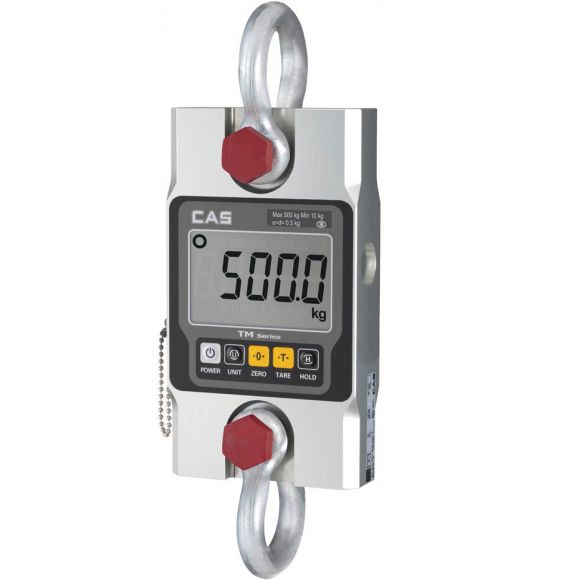

The TM Series digital dynamometer is a cost effective solution for simple to complex force measurement and overhead weighing applications. The TM Series is ZigBee wireless ready. Simply add the TWN Portable Handheld Indicator to access the wireless features.
The battery operated TM Series includes an internal antenna and on‐ board, easy to read 1.2" LCD display. For more demanding applications, the TWN Portable Handheld Indicator with ZigBee® wireless communication is available. Industry standard Crosby shackles and a communications cable connector are included with each TM Series Tension Meter. Crosby hooks are optional.
Add the optional TWN Handheld Indicator to take advantage of the ZigBee® wireless functions of the TM Series Tension Meter.
| SKU | TM Series |
|---|---|
| Capacity | 3K , 2K , 5K |
| Display | LCD |
| Range | Single |
| Display Digits | 5 Digit LCD (1 Inch) |
| Units | LB, KG |
| Operating Temperature | -20°C - +60°C |
| Dimensions | 4.7 x 8.7 x 2.1 , 10" x 10" x 2" , 5.1 x 10.2 x 2.4 |
| Washdown | No |
| Legal For Trade | Measurement Canada |
| Measurement Canada | No |
| NTEP | No |
| Country of Manufacture | South Korea |
| Warranty | Two Years |
