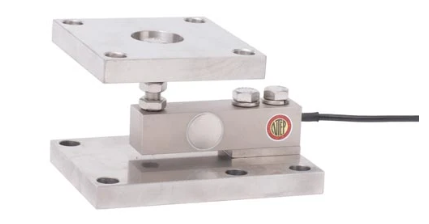

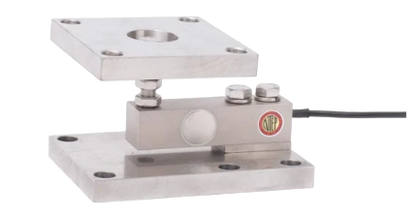

CAS-82M Series


Quick Overview

Mild steel and stainless steel single ended shear beam mount assembly with articulating mounting plate. Mild steel or stainless steel load cells with hermetic seal welded cap, IP67 rated. Ranging in capacities from 250 lbs. to 20,000 lbs.

< Return to List

More Views


Single ended shear beam tank mount in capacities ranging from 250 lbs to 20,000 lbs.

  • Available with alloy steel, stainless steel, and stainless steel hermetic sealed welded load cell
  • Redundant sealing
  • Articulating mounting plate
  • Low profile design
  • Integral height adjustment for balancing

Applications - Ideal for tank, bin, and hopper weighing

Configurations -

  • Alloy steel load cell with mild steel mount
  • Stainless steel load cell with stainless steel mount
  • Stainless steel welded load cell with stainless steel mount


Load Cell -

CAS-23LA, CAS-23LS -    FM Approved

CAS-23LW2, CAS-23LW3 - NTEP Approved FM Approved Waterproof

Kits Available - 3 Mount or 4 Mount Kits are available. Kits will include the CAS SS34AS NEMA 4X Stainless Steel Junction Box with 4 cell signal trim summing card and 25 ft of cable.
