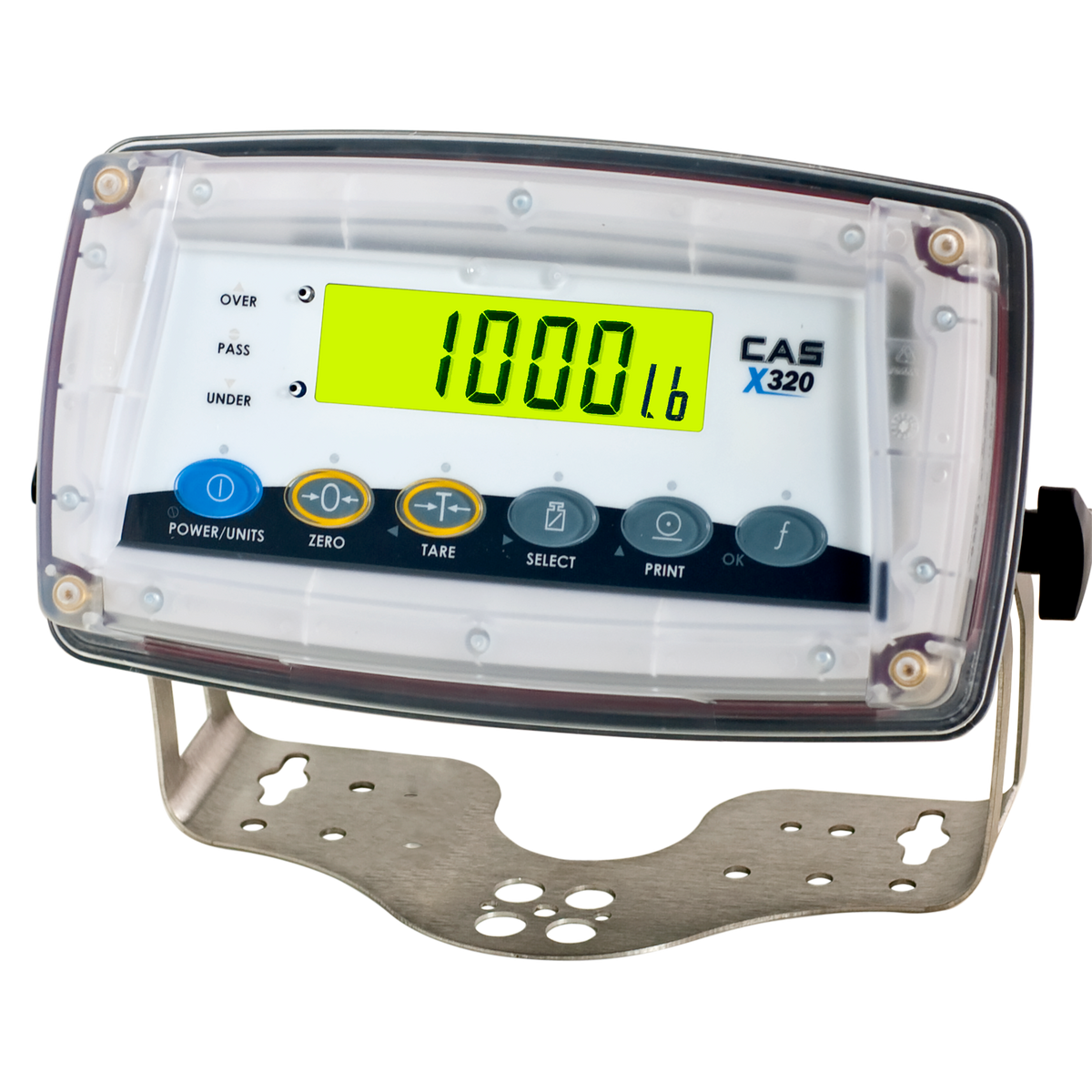

CAS-X320 Series

The CAS X320 combines innovation in industrial design and engineering excellence to create an indicator that is ideal for use in automotive, pharmaceutical, chemical, and food processing applications. Constructed of a food grade, chemical resistant, high tech composite alloy. Impervious to detergents and cleaning chemicals.

SKU
CAS-X320 Series
Grouped product items
Image Model Price
CAS-X320-WM SKU: 403021
CAS-X320B SKU: 403018

Quick Overview

The CAS X320 has the industry’s highest environmental protection rating – IP 69K.

IP 69K - The CAS X320 is designed to withstand cleaning with high pressure water jets from multiple angles to 1450 psi, and high temperatures to 176°F/80°C.

IP 68 - The indicator has been tested and certified as dust tight and can also be submerged in over 6 ft of water for 1 hr.

Impact Resistant - Designed to withstand the impact of being dropped from almost 4 feet (1.2 meters)

Easy to Use - Use the LCD backlit display for weight only or configure both the weight display and color coded Under Pass Over annunciators to simply notify the operator if the product being weighed is in tolerance. Free firmware is available to store the 5 most commonly used product weight ranges for simple operator recall.

Connectivity & Traceability - The CAS X320 is designed to function as a stand- alone workstation or for your data management needs, place the unit in a wired or wireless networked environment.

Features

  • Washdown Indicator
  • Highest Environmental Protection Rating IP69/68
  • Impact Resistant
  • Manufactured with High Tech Composite Alloy
  • Encapsulated Components
  • Capacitive Keyboard-Knife, Scissor, and Sharp Tool Proof
  • Connect up to 4-350 ohm Load Cells
  • Checkweighing Annunciators
  • Supplied Bi-directional RS-232 Serial Port
  • Lb/oz/g-Unit Switchable or Fixed Unit(lb/oz/kg/g/ton)
  • Stainless Desk/Wall Mount Included
  • CAS X320B includes battery and recharger

Housing

  • Sturdy design with enhanced wall strength
  • Single piece front panel to protect the display and avoid leaks
  • Double 'O' ring to seal outer housing
  • No external parts using adhesive
  • Encapsulated circuitry
  • No moving parts

CASLink Innovation

In addition to front panel configuration capabilities, a magnetically coupled infrared connector on the X320's front panel provides a convenient laptop connection for simplified setup when using CASLink, a PC based configuration software tool. CASLink enables convenient setup, transfer of configuration and calibration parameters, and simple downloading of software upgrades without opening the indicator and jeopardizing the integrity of the units water tight seal.

Options

  • Remote Display
  • Wall Mount

Dimensions

More Information
SKU CAS-X320 Series
Display LCD w/Backlight
Dimensions 10" x 10" x 2"
Washdown No
Legal For Trade Yes
Measurement Canada No
NTEP No
Warranty Two Years
Capacity 3K
