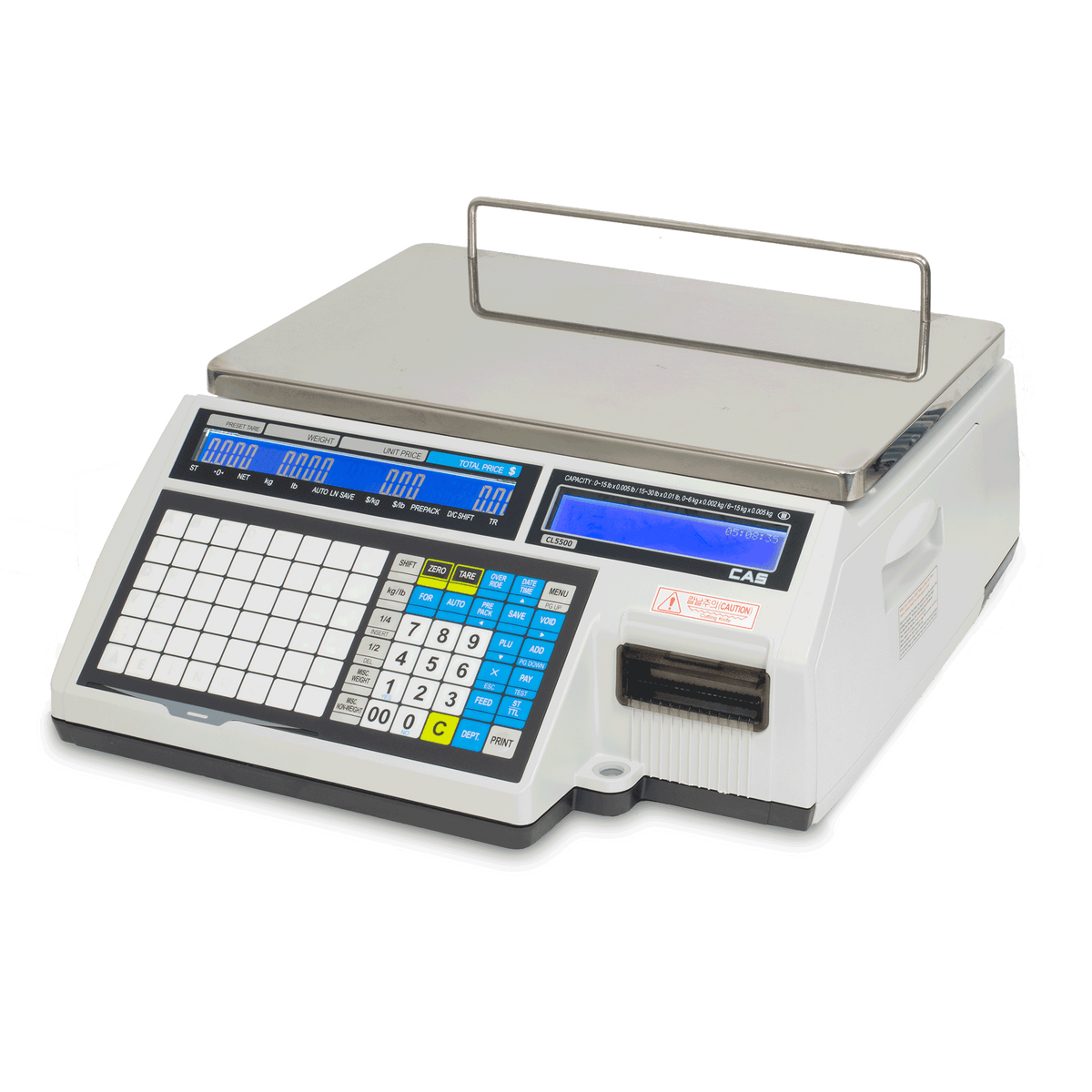

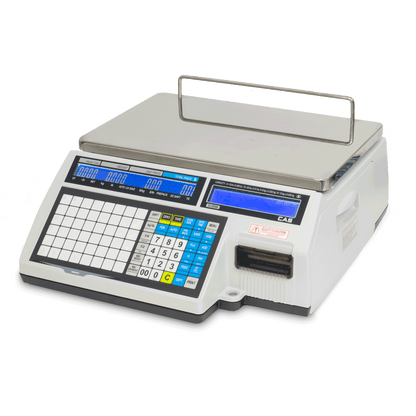

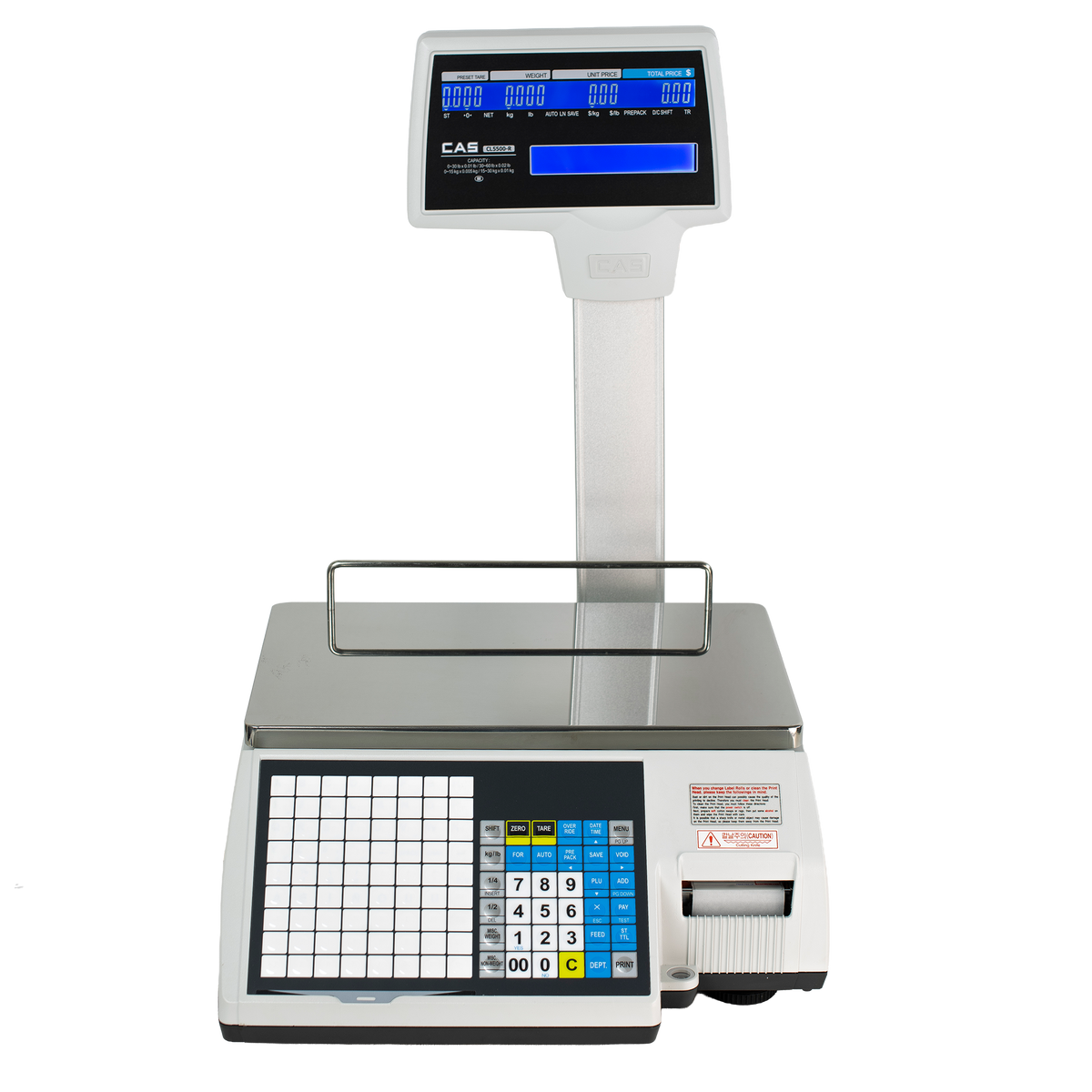

CL5500 Label Printing Scales

CL5500 Label Printing Scales

$2,380.00 USD
$2,380.00 USD
Sale Sold out
Capacity
Pole
Communication Type
Need local purchasing or installation support?
View full details

Description

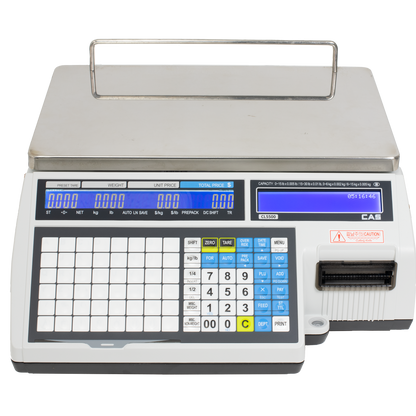

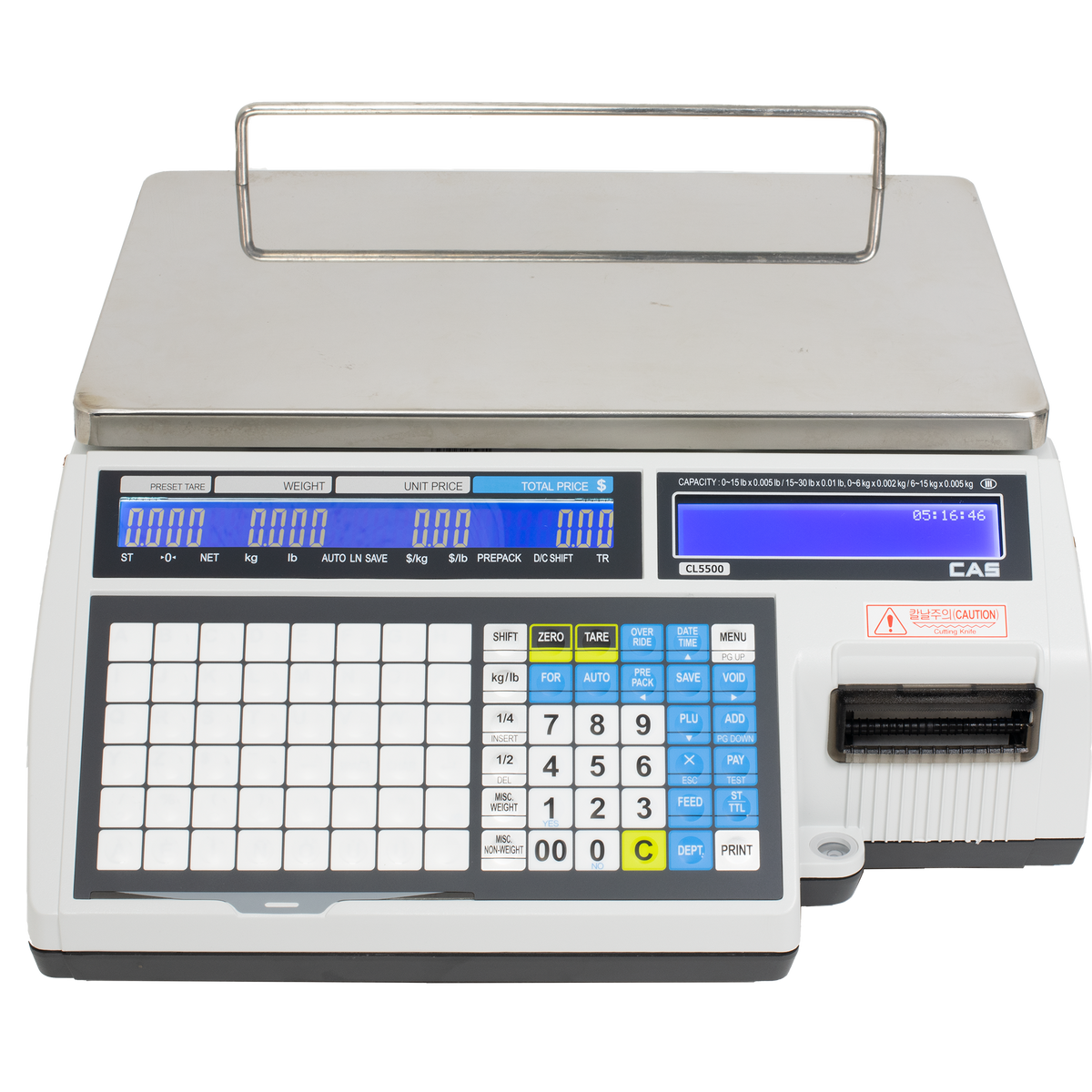

Displays

The CL5500 is equipped with two high quality, easy to read LCD Displays. The operator side displays are used to show Tare Weight, Unit Weight, Unit Price and Total Price on the left. The display on the right is used to display PLU names, Scrolling Messages and Programming Menus.

Keyboard

The Double Click Call feature allows the operator to recall PLU's by double-clicking the speed key instead of having to use the shift key. The standard bench model comes equipped with 96 (48 x 2) quick look up keys. These keys may also be programmed to be special function keys.

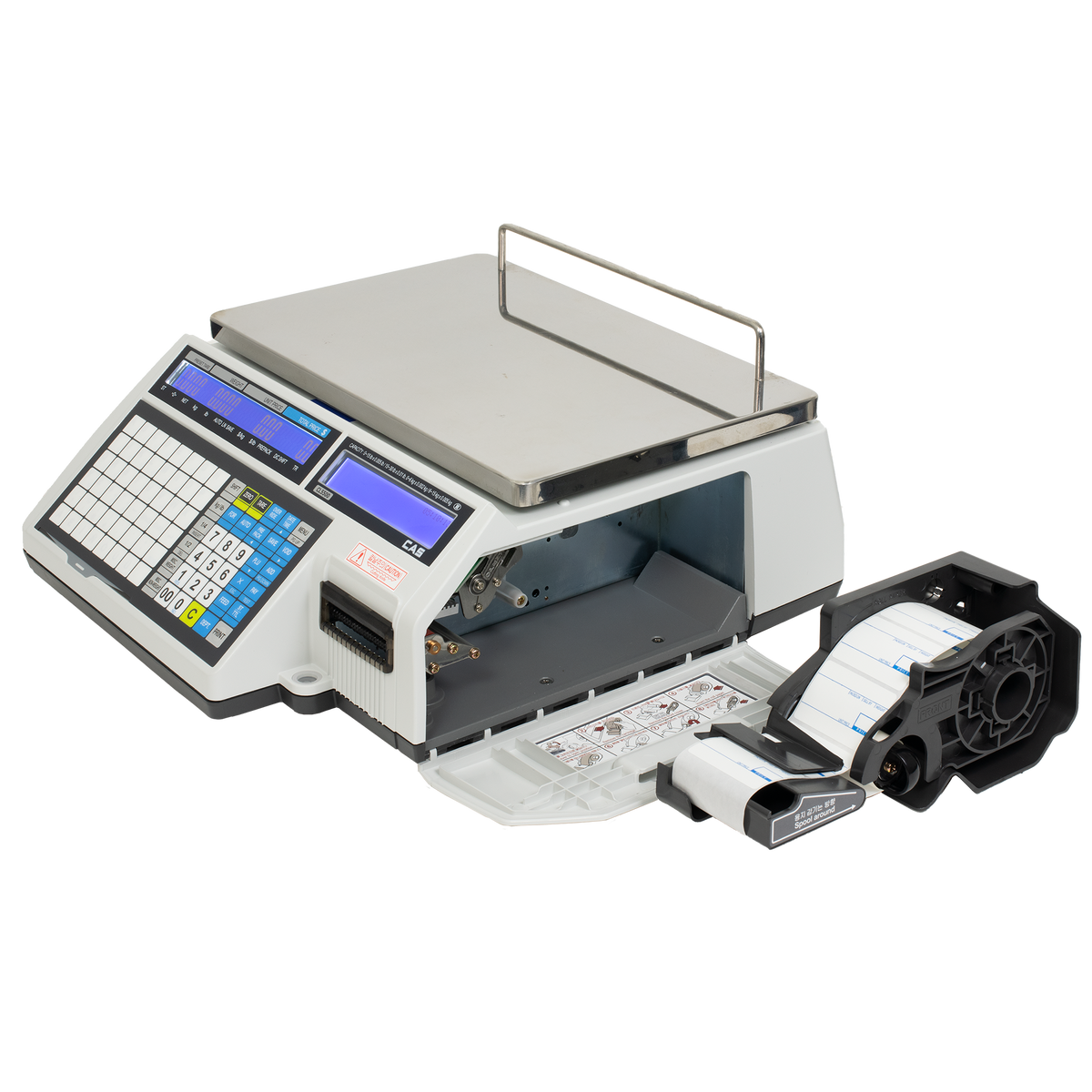

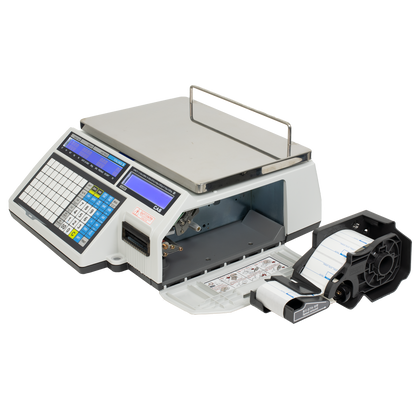

Printer & Label Cartridge

Achieve print speeds up to 100mm/sec with a print resolution of 202 dpi. The removable label cartridge's simple design allows operators a method of quickly and easily reloading labels.

Label Formats

The CL5500 supports various die cut or continuous label sizes up to 200mm in length with the 45 preset label formats stored in its memory. With CL Works Pro software, you can add up to 20 more custom label formats.

CL Works Pro Software

CL Works Pro offers an easy to use data editing solution for businesses in supermarkets, deli's and other retail markets. Manage all retail activities from PLUs to label formats. CL Works Pro provides solution for analyzing sales data quickly, easily, and accurately.

The accumulated data would become an asset for users. CL Works Pro is compatible with all CL Series Label Printing Scales that use the most recent firmware. Control multiple scales remotely and efficiently to manage your retail process.

Features

  • 30 lb and 60 lb Capacities Available
  • Dual Range
  • 4,000 PLU's w/Direct Ingredient Messages - Max 2,100 Characters
  • LCD Displays
  • 96 Speed Keys (48 keys x 2)
  • High Speed Thermal Printer
  • Ethernet Included/Wireless Optional
  • Same Menu Code System as the CL5000
  • Multiple Barcode Formats
  • 45 Standard Label Formats
  • Up to 20 Custom Labels
  • English, Korean, Chinese or Spanish Characters
  • Compatible with CL Works Pro
  • Bench: 16(W) x 17(D) x 6.8(H)
  • Legal for Trade

Options

  • Fish Pan
  • Keyboard Wet Cover
  • Full Body Protective Cover
  • Wireless Network Kit
  • Remote Platform

What's Included in the Box

  • Scale
  • RS232 Cable
  • Plastic Platter
  • Stainless Steel Platter
  • Plastic Cutter Bar
  • Starter Roll of Labels (LST-8010)
  • Owner's Manual
  • Power Cord Cable

Dimensions

Specifications

Approvals
07-042A4
Country of manufacture
South Korea
Display digits
4/4/6/6 - Tare/Weight/Unit Pr/Total Pr
Interface
USB, Serial, Ethernet, Wifi
Legal for trade
NTEP
Measurement canada
No
Model
CL5500
Ntep
Yes
Operating temperature
-10° C ~ 40° C / 14° F ~ 104° F

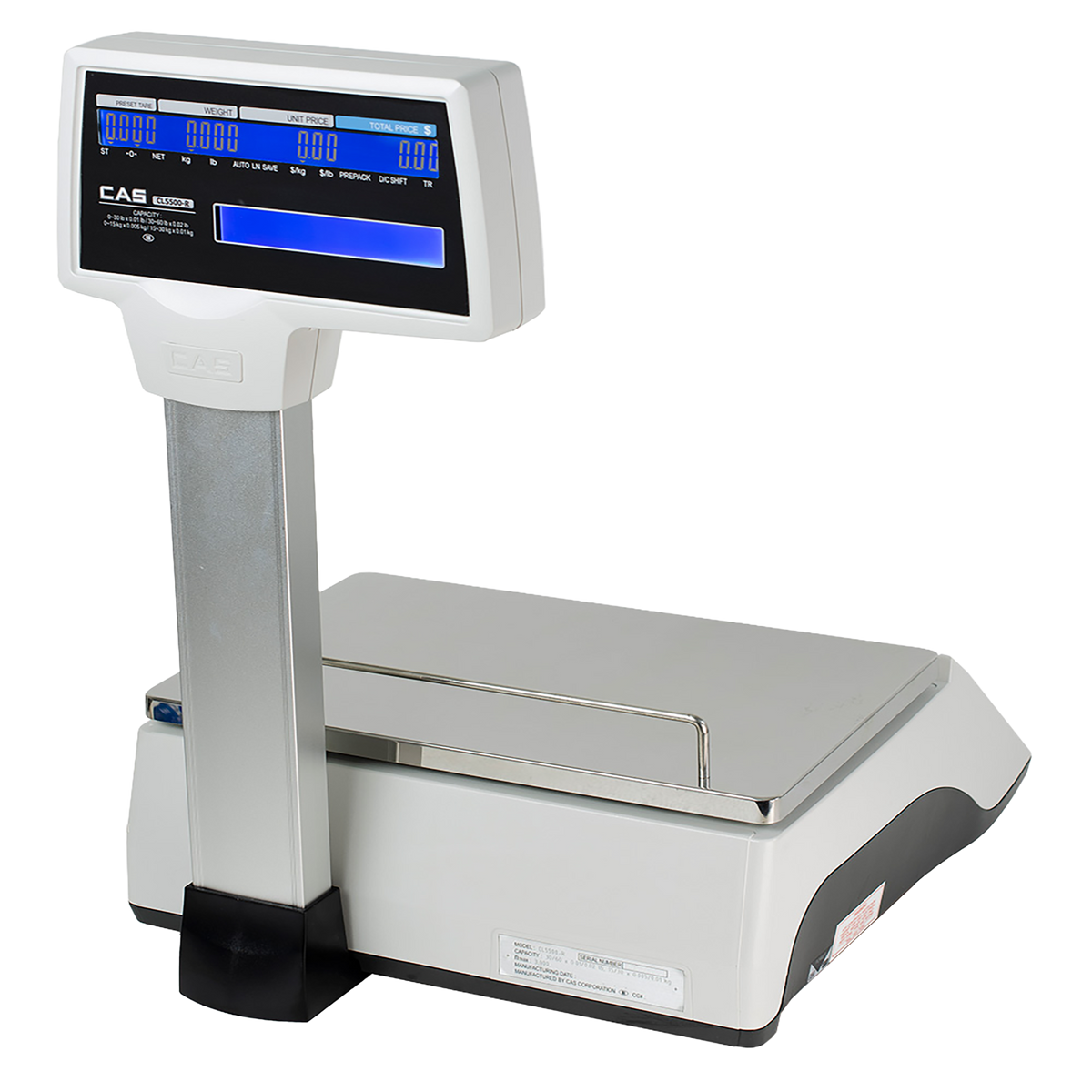

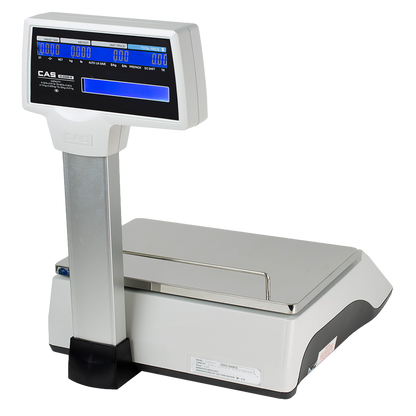

Pole
Yes
Power supply
AC 100 ~ 240V, 50/60Hz
Printer type
Thermal Label
Units
LB, KG
Warranty
One Year
Washdown
No
