ED Series

ED Series

Capacity
Need local purchasing or installation support?
Quantity
View full details

Collapsible content

Description

Features

  • Dual Range - 4 Capacities Available
  •  High resolution for accurate weighing/counting
  • Simple and easy operation (9 large function keys)
  • Counting & percentage mode
  • Accumulation mode
  • Weight/Count/Percentage comparison function
  • (HI/OK/LO) with alarm beeps

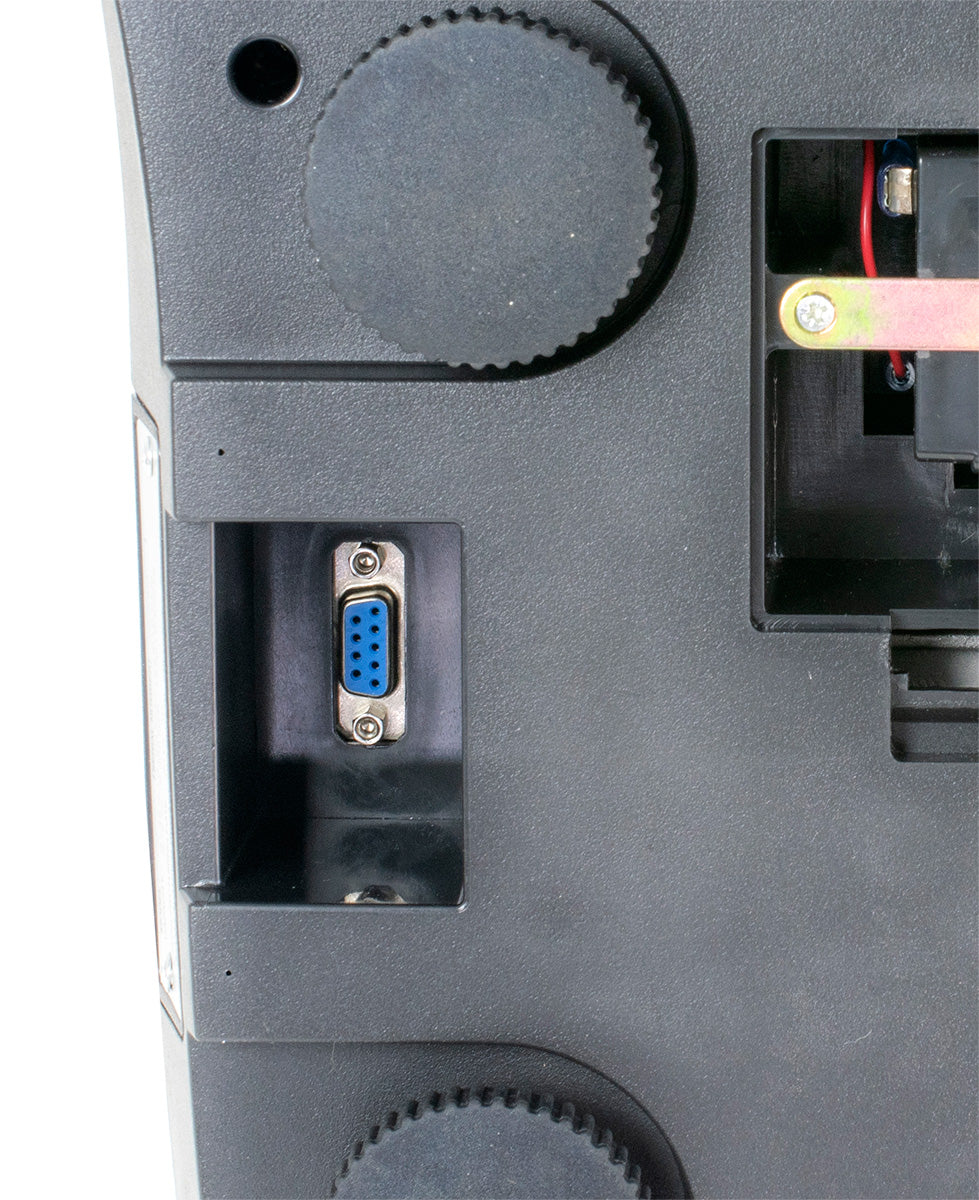

  • RS-232C interface (PC/Printer)
  •  Rechargeable battery
  • Battery Saver w/Auto Power Off
  • Backlight LCD
  •  Options: DLP-50 Label Printer
  • DEP-50 Receipt Printer
  • Dust Protection Cover

Options

  • Full Body Protective Cover
  • DLP-50 Label Printer
  • DEP-50 Receipt Printer
  • TMU295 Epson Slip Printer

Applications

  • Check weighing
  • Accumulation

What's Included in the Box

  • Scale
  • Lead and Wire Seal
  • Stainless Steel Platter
  • Plastic Platter
  • 12V AC/DC Power Adapter
  • Owner's Manual

Dimensions


Specifications

Capacities
15 lb
Country of manufacture
China
Dimensions
13 (W) x 13.6 (D) x 4.2 (H) / 330 (W) x 346 (D) x 107 (H)
Display
LCD
Legal for trade
NTEP
Measurement canada
No
Model
ED Series
Ntep
Yes
Operating temperature
-10°C ~ 40°C / 14°F ~ 104°F
Platter size
12(W) x 8.75(D)
Pole
No
Power supply
AC adapter DC 12V/1A or 12V/800m/ A Internal rechargeable sealed acid battery - 6V DC
Range
Dual
Resolution
0-3 x 0.001 lb / 3-6 0.002 lb
Units
LB
Warranty
Two Years
Washdown
No
